AF-45, High Speed Embossed Carrier Tape Forming Machine

Applications:

Carrier Tape apply to the IC, SMT semiconductors,crystal and other chip components of the SMD tape packaging. Piezoelectric crystal industry specifications:49U/SMD,49S/SMD,UM-1/SMD,UM-5/SMD,SMU7,SMU5,osc half 8045,7050,6035,5.32,4023,3225 and other SMT.

Technology Peatures

Carrier Tape by three or PS single sheet on the sub from the materials, advanced specialized equipment from material processing to computer on-line scout molding processing technologies from the vacuum forming.Punching positioning of the automatic admission materials overall consistent materials,in addition to precision and acurate,fast and in EIA standard can satisfy environmental cold,heat,manetism,ultraviolet,anti-static and other electronic properties of the demand.

High-speed particle forming carrier tape machine

High-speed particle forming carrier tape machine named particle forming machine for short, it is a sophisticated machine we researched and developed successfully in 2005. After years of accumulation and improvements, our machine is at a leading position in this industry.

Linear speed of the machine can reach 25m/min as each individual tape; there are two models of our machines: one into 4; one into six. In the market, single layer tape and 3-layer tape are available. The single layer tape is made of PC; the 3-layer tape is made of PC and PS: top layer and bottom layer are of conductive PS; the middle layer is transparency PC.

It is featured by an advanced production technology: Putting plastic raw materials directly in the machine, then extruding--molding --punching – slitting- final winding in mode of complete automation. Since three layers coming into shape at one time; simple process and high efficient utilization rate of raw materials, it has replaced the traditional 2-time forming technology. It greatly reduces the production cost and its production efficiency is dozens of times of the traditional one.

Tape specifications:

Thickness: 0.2mm-0.5mm
width:12mm,16mm,24mm,32mm,44mm,etc.
Black Conductive PS Sheet for Carrier Tape
RoHS standard

PS Sheet is black carrier tape material with good rigidity and strong toughness
Recommended for packaging of IC electronic components




YAOAN company, Established in early 1980’s, previous name: DONGGUAN CITY ANFU PLASTIC MACHINE FACTORY; located in Chinese famous manufacturing city: Dongguan; is a plastic machine manufacturer with a strong capacity of independent R&D, manufacturing and after sale service.

Basing on the super quality and hard work in exploring technical innovations; she has several honors given from our government, such as: ‘PRIVATE HIGH-TECH ENTERPRISES’ ‘GUANGDONG GUANGDONG PROINCE FAMOUS BRAND’, ‘EMPOLYEE SATISFACTION ENTERPRISE’, ‘CONTRACT ABIDING AND TRUSTWORTHY ENTERPRISE’ etc. She has adopted the certificates of “ ISO9001”, ‘ISO14001’ and ‘CE’ (European safety certificate); She owns several technical patents and several technical research achievements and technical standards are at top level in the field of plastic extrusion machines.

During the period of over 30 years, YAOAN has successfully offered over 10,000.00 sets of super quality extrusion equipments and excellent after-saleservice to the super manufacturers all around the world; the quality and service are acknowledged by most of clients.

Our products have a widely application in those fields: Construction, agriculture, medical care, transportation, electronics, textile, packaging, furniture etc. Since that the special R&D team for every big category of machines is established and it ensures the specialty and preciseness of the manufacturing in order to satisfy the various special customized requirements.

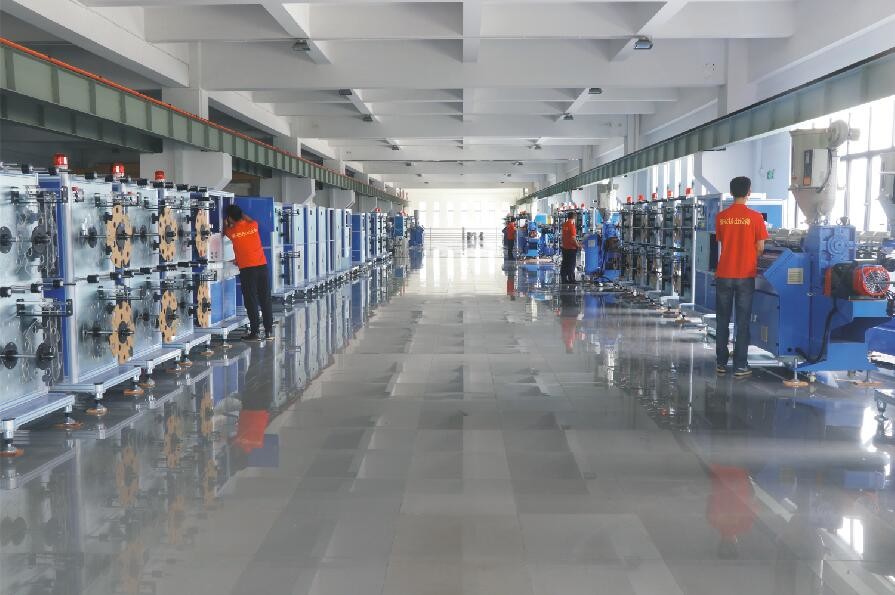

As a strong capable manufacturer, YAOAN possesses several specialized technical teams, an over 100 millions invested over 80000square meter factory area, over tens imported large scale CNC and advanced steel laser cutting centers etc. Powerful technical capacity and advance engineering equipments enable the delivery of machines in good quality and in time.

Every machine has undertaken the below process steps before its shipment in good quality: firstly, clear understanding client’s special requirements after pre-sale cautious communications; then specialized team’s the Researching and designing, then strict control on every production step and process; finally the related departments’ successful testing and commissioning; This process ensures our machine standard: preciseness, stability, high productivity!
